CERAMIC FINISHING  MEDIA

Angle Cut Cylinder Ceramic Media

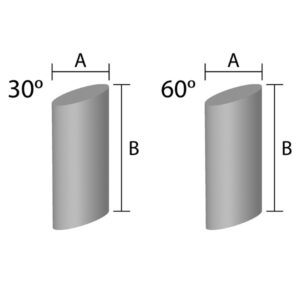

CERAMIC 30˚ AND 60˚ ANGLE CUT CYLINDERS: Angle Cylinders are a uniquely designed tumbling media to improve finishes and cut costs. They reach into the most remote crevices and holes and virtually eliminate bridging or stacking.

PART # DEGREE COMPOSITION DIMENSION (A) DIMENSION (B)
F1-8 30

F

1/8″ 11/32″
F3-16 30

F

3/16″ 11/32″
F5-16 30

F

5/16″ 9/16″
F7-16 30

F

7/16″ 25/32″
F5-8 30

F

5/8″ 1-1/8″
ECH5-16 30

ECH

5/16″ 9/16″
ECH7-16 30

ECH

5/8″ 1-1/8″
ECH5-8 30

ECH

5/8″ 1-1/8″
ECH7-8 30

ECH

7/8″ 1-1/2″
C1-8 30

C

1/8″ 11/32″
C3-16 30

C

3/16″ 11/32″
C5-16 30

C

5/16″ 9/16″
C7-16 30

C

7/16″ 25/32″
C5-8 30

C

5/8″ 1-1/8″
C7-8 30

C

7/8″ 1-1/2″
XC1-18 30

XC

1/8″ 11/32″
XC3-16 30

XC

3/16″ 11/32″
XC5-16 30

XC

5/16″ 9/16″
XC7-16 30

XC

7/16″ 25/32″
XC5-8 30

XC

5/8″ 1-1/8″
XC7-8 30

XC

7/8″ 1-1/2″
H3-16 30

H

3/16″ 11/32″
H7-16 30

H

7/16″ 25/32″
H5-18 30

H

5/8″ 1-1/8″
F1-4A60 60

F

1/4″ 7/16″
F3-8A60 60

F

3/8″ 9/16″
C1-4A60 60

C

1/4″ 7/16″
C5-16A60 60

C

5/16″ 1/2″
C3-8A60 60

C

3/8″ 9/16″

Angle Cut Star Ceramic Media

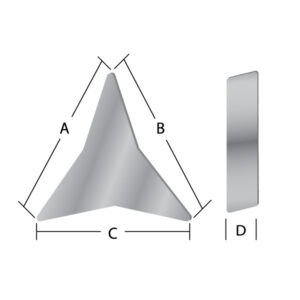

ANGLE CUT STARS: Angle Cut Stars may replace three or more sizes of other perform media and provide for a wide variety of parts from simple to intricate shapes.

PART # COMPOSITION DIMENSION (A) DIMENSION (B) DIMENSION (C) DIMENSION (D)
C7-8S

C

7/8″ 7/8″ 7/8″ 5/16″
C11-8S

C

1-1/8″ 1-1/8″ 1-1/8″ 3/8″
XC5-8S

XC

5/8″ 5/8″ 5/8″ 1/4″
XC7-8S

XC

7/8″ 7/8″ 7/8″ 5/16″
XC11-8S

XC

1-1/8″ 1-1/8″ 1-1/8″ 3/8″

Angle Cut Triangle Ceramic Media

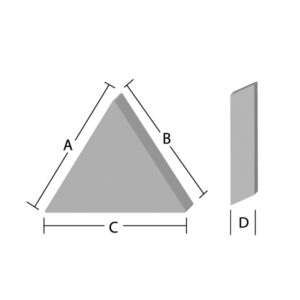

20˚ ANGLE CUT TRIANGLES: Angle Cut Triangles reach into remote areas not accessible to regular square cut media. It is a very efficient media that retains its basic shape.

PART # COMPOSITION DIMENSION (A) DIMENSION (B) DIMENSION (C) DIMENSION (D)
F3-8T

F

3/8” 3/8” 3/8” 3/16”
F5-8T

F

5/8” 5/8” 5/8” 3/16”
F7-8T

F

7/8” 7/8” 7/8” 5/16”
ECH5-8T

ECH

5/8” 5/8” 5/8” 3/16”
ECH7-8T2

ECH

7/8” 7/8” 7/8” 5/8”
ECH7-8T3

ECH

7/8” 7/8” 7/8” 15/16”
ECH11-8T

ECH

1-1/8” 1-1/8” 1-1/8” 5/16”
ECH11-8T3

ECH

1-1/8” 1-1/8” 1-1/8” 15/16”
ECH13-8T

ECH

1-3/8” 1-3/8” 1-3/8” 1/2”
ECH17-8T

ECH

1-7/8” 1-7/8” 1-7/8” 5/8”
C3-8T

C

3/8” 3/8” 3/8” 3/16”
C38T2

C

3/8” 3/8” 3/8” 3/8”
C5-8T

C

5/8” 5/8” 5/8” 3/16”
C5T-8T2

C

5/8” 5/8” 5/8” 3/8”
C5-8T3

C

5/8” 5/8” 5/8” 9/16”
C7-8

C

7/8” 7/8” 7/8” 5/16”
C7-8T3

C

7/8” 7/8” 7/8” 15/16”
C11-8T

C

1-1/8” 1-1/8” 1-1/8” 5/16”
C11-8T3

C

1-1/8” 1-1/8” 1-1/8” 15/16”
C13-8T

C

1-3/8” 1-3/8” 1-3/8” 1/2”
C17-8T

C

1-7/8” 1-7/8” 1-7/8” 5/8”
XC3-16T3

XC

3/16” 3/16” 3/16” 3/4”
XC3-8T

XC

3/8” 3/8” 3/8” 3/16”
XC3-8T2

XC

3/8” 3/8” 3/8” 3/8”
XC5-8T

XC

5/8” 5/8” 5/8” 3/16”
XC5-8T2

XC

5/8” 5/8” 5/8” 3/8”
XC5-8T3

XC

5/8” 5/8” 5/8” 9/16”
XC7-8T

XC

7/8” 7/8” 7/8” 5/16”
XC7-8T3

XC

7/8” 7/8” 7/8” 15/16”
XC11-8T

XC

1-1/8” 1-1/8” 1-1/8” 5/16”
XC11-8T3

XC

1-1/8” 1-1/8” 1-1/8” 15/16”
XC13-8T

XC

1-3/8” 1-3/8” 1-3/8” 1/2”
XC17-8T

XC

1-7/8” 1-7/8” 1-7/8” 5/16”
SC7-8T

SC

7/8” 7/8” 7/8” 9/16”
SC11-8T

SC

1-1/8” 1-1/8” 1-1/8” 5/16”
H7-8T2

H

7/8” 7/8” 7/8” 5/8”
H7-8T2

H

7/8” 7/8” 7/8” 5/8”
H11-8T

H

1-1/8” 1-1/8” 1-1/8” 15/16”
H11-8T2

H

1-1/8” 1-1/8” 1-1/8” 5/8”

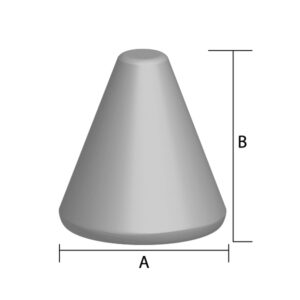

CONES: Cones are designed so they will easily separate from parts.  Their unique shape enables them to reach into remote areas without lodging.

PART # COMPOSITION DIMENSION (A) DIMENSION (B)
FB3-8CN

FB

3/8” 1/2″
FB9-16CN

FB

9/16” 5/8″
FB11-16CN

FB

11/16″ 3/4″
C3-4CN

C

3/4″ 7/8″
XC3-4CN

XC

3/4″ 7/8″

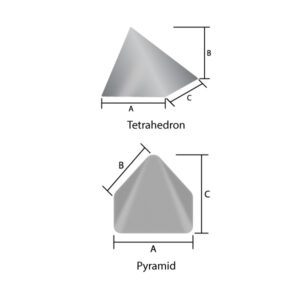

Tetrahedron & Pyramid Mix Ceramic MediaTETRAHEDRON & PYRAMIDS MIX: These two shapes combine the excellent tumbling qualities of Cylinders, Triangles, Cones and Star shapes.  The flat sides provide the best in cutting surfaces and are designed to reach into holes and slots without lodging.  They react well in vibratory and have extremely good orbital action in round bowls.

PART # COMPOSITION DIMENSION (A) DIMENSION (B) DIMENSION (C)
C11-4PY

C

1-1/4″ 1-1/4″ 1″
C11-4TET

C

1-1/4″ 1-1/4″ 1-1/4″

Cylindrical Wedges Ceramic Media

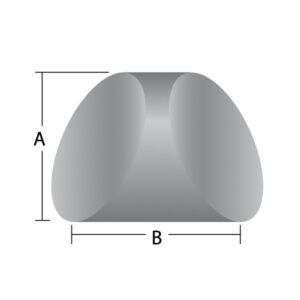

CYLINDRICAL WEDGES: The Cylindrical Wedges are one of our most versatile media products.  They combine the excellent surface finish of a cylinder, while the large flat sides provide maximum cutting area.

PART # COMPOSITION DIMENSION (A) DIMENSION (B)
ECH5-8WG

ECH

5/8” 3/4”
ECH1-WG

ECH

1” 1-1/8”
ECH11-2WG

ECH

1-1/2” 1-5/8”
C1-WG

C

1” 1-1/8”
C11-2WG

C

1-1/2” 1-5/8”

Angle Cut Ellipses Ceramic Media

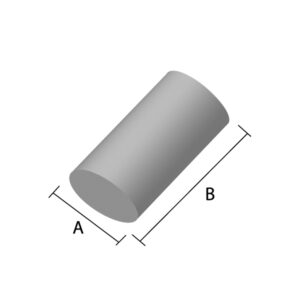

ANGLE CUT ELLIPSES: These angle cut ellipses combine the cutting action of flat triangles with the finishing action of cylinders.  The unique shape can resolve lodging problems and are particularly effective on concave surfaces.

PART # COMPOSITION DIMENSION (A) DIMENSION (B)
C3-4Ellp

C

3/4” 1″
C9-16Ellp

C

9/16” 25/32″
