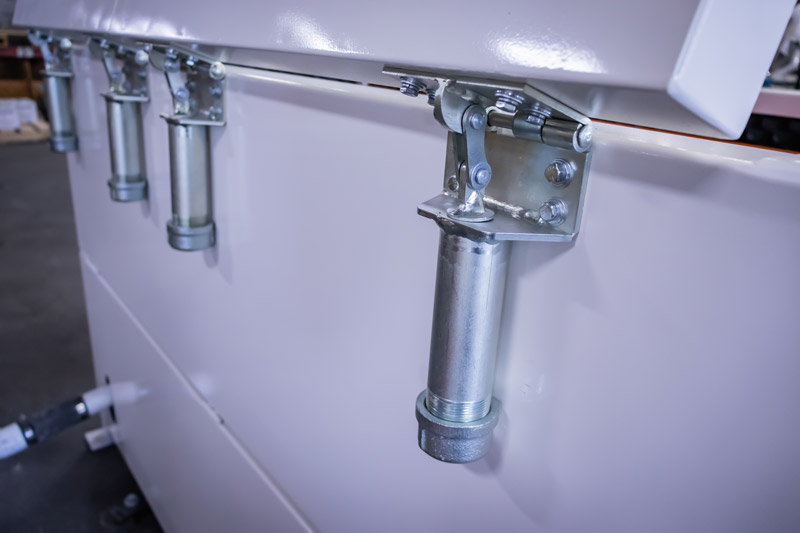

V SERIES VIBRATORY TUB
Robust & Versatile

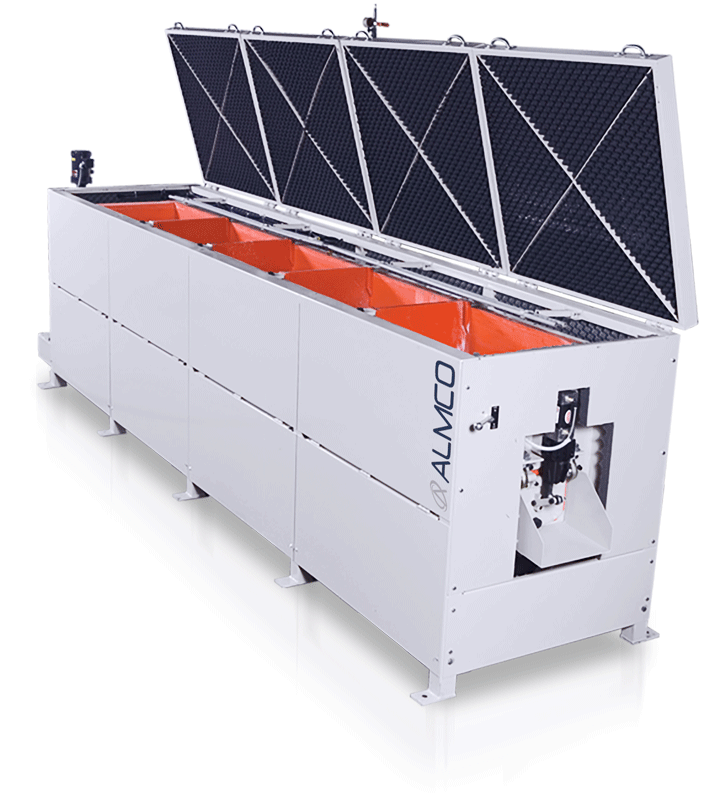

The V Series Vibratory Tub finishing machines are heavy-duty units with many optional configurations to ensure you get a system that matches exactly what is needed. The V Series may be configured to be part of an automated system, eliminating the need for manual intervention. These uniquely flexible machines produce exceptionally fine results. This uniquely flexible machine produces exceptionally fine results. The V Series tub can finish anything from massive wing spars for aircrafts, to thousands of small parts like stampings in a single batch.

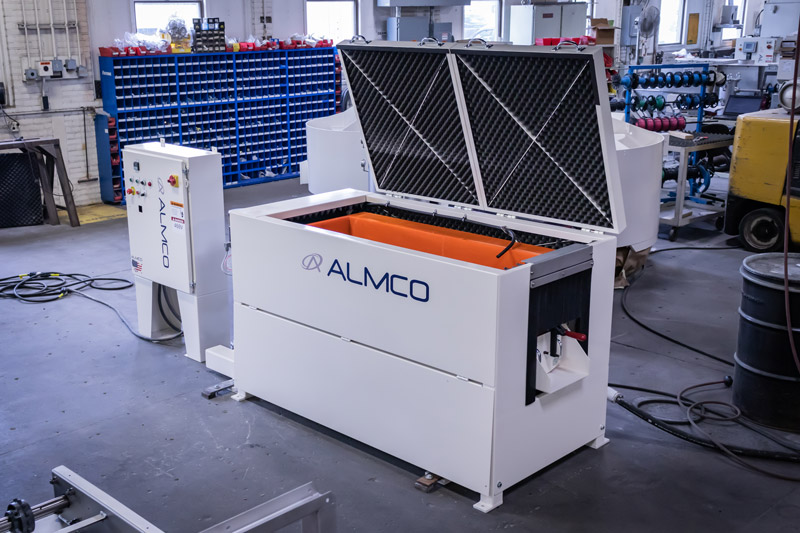

These machines work great as a stand-alone operation or designed into a custom system with conveyors and material handling equipment for automatic loading and unloading.

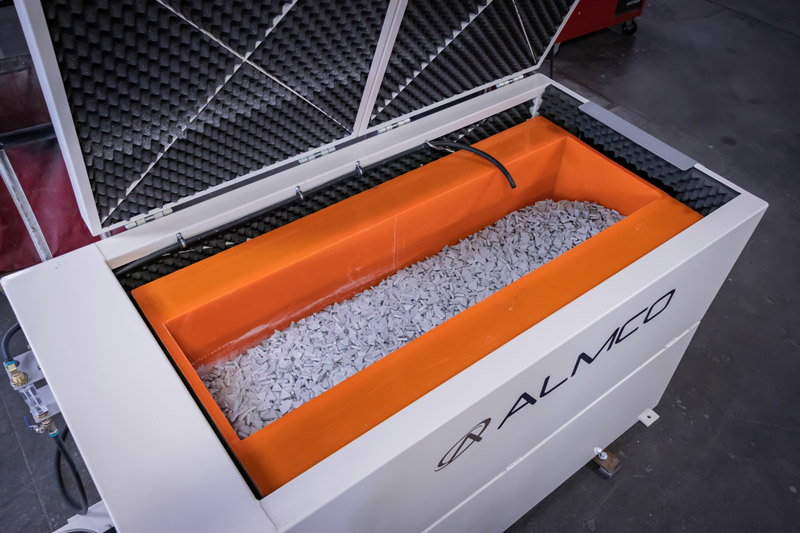

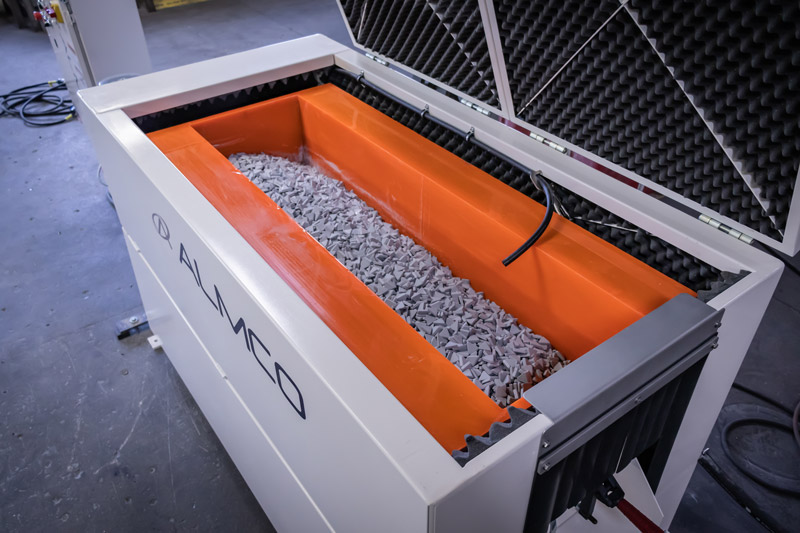

The tub cross-section is designed to maximize the finishing action. These machines are robust, versatile and capable of processing parts in batches using a wide variety of finishing media.
How It Works
When parts and media are placed into the tub, the counterweights on the spinning vibrator shaft cause the spring-mounted processing tub to rapidly oscillate on its springs. This motion causes the mass of parts and media within the tub to vibrate and roll within the tub in an orderly fashion. This rolling action can be controlled by adjusting the speed of the vibrator assembly and by changing the amount of counterweight.
Features
- Wet or dry processing capabilities
- Variable amplitude for process adjustment
- Heavy duty polyurethane lining
- Ability to run steel media
- Automated loading and unloading
- Low-high volume production
Options

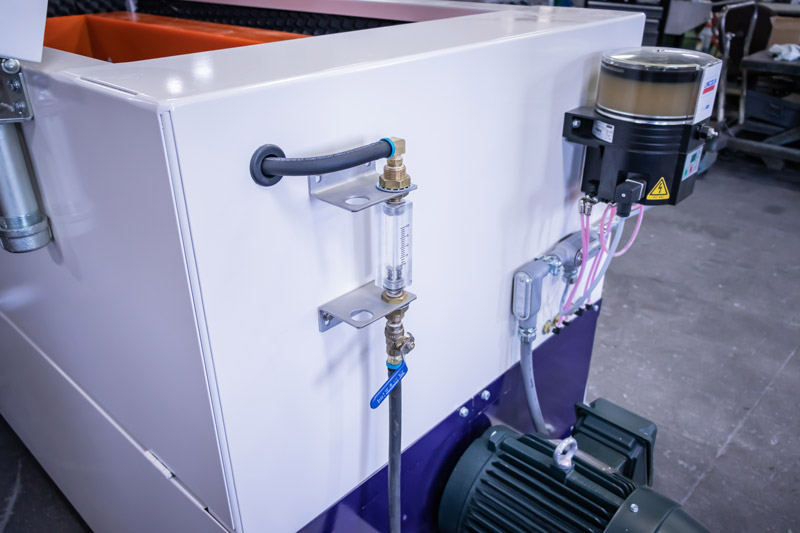

- Automatic lubrication system
- Automated loading and unloading
- Flowmeter
- Tub divider

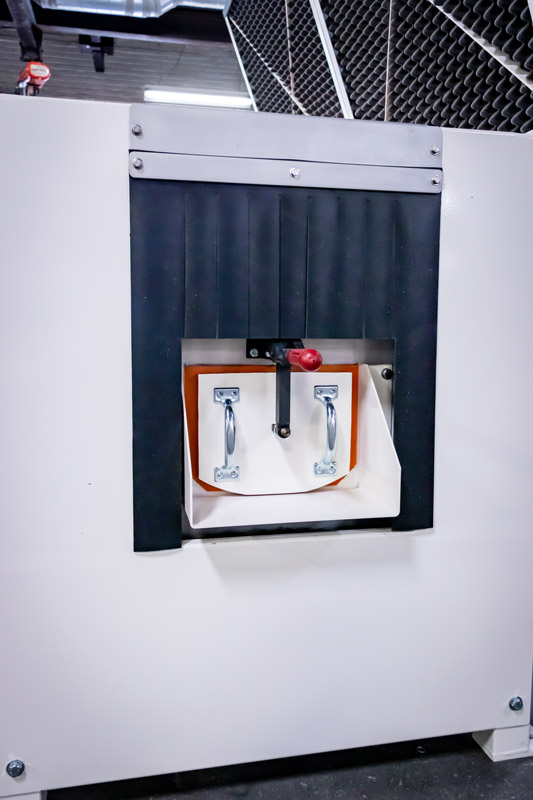

- Air-operated discharge door
- Free-standing sound enclosure

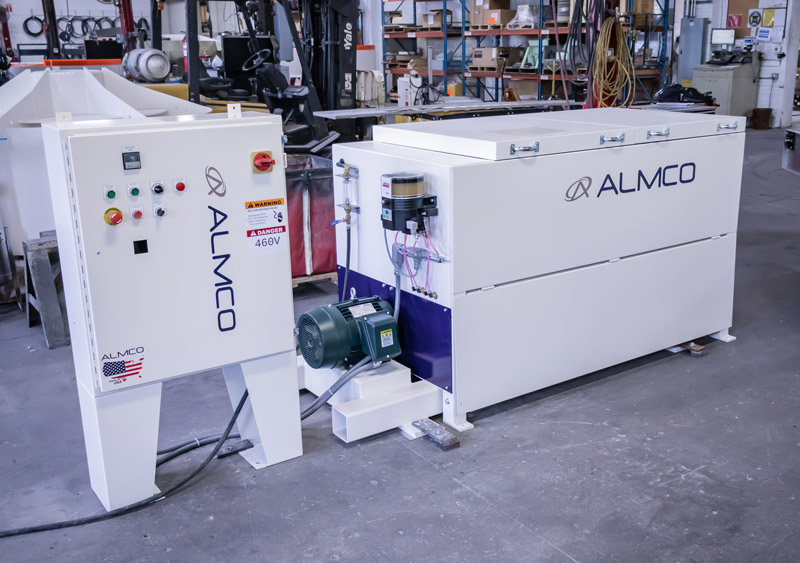

- PLC and touchscreen controls
- UA 508A electrical controls
| Model No. | Working Capacity (Cu Ft.) | Tub Cross Section (In) | Tub Length (In) | Drive HP | Overall Dimensions (In) |
|---|---|---|---|---|---|
| V-1934 | 6.5 | 19 | 34 | 7.5 | 76 x 44 x 48 |
| V-1661 | 8.25 | 16 | 61 | 10 | 110 x 39 x 44 |
| V-2334 | 10 | 23 | 34 | 10 | 81 x 85 x 61 |
| V-1696 | 13 | 16 | 96 | 15 | 146 x 40 x 50 |
| V-2345 | 13 | 23 | 45 | 15 | 100 x 48 x 69 |
| V-16155 | 20 | 16 | 155 | 20 | 204 x 40 x 52 |
| V-19114 | 22 | 19 | 114 | 15 | 164 x 41 x 54 |
| V-16186 | 25 | 16 | 186 | 20 | 230 x 40 x 53 |
| V-19155 | 30 | 19 | 155 | 25 | 205 x 41 x 54 |
| V-23142 | 38 | 23 | 142 | 40 | 210 x 50 x 65 |
| V-23189 | 48 | 23 | 189 | 50 | 255 x 48 x 65 |
| V-2842 | 14.5 | 28 | 42 | 15 | 94 x 55 x 64 |
| V-2872 | 25 | 28 | 72 | 25 | 140 x 55 x 70 |
| V-3347 | 21 | 33 | 47 | 25 | 94 x 58 x 75 |
| V-3372 | 34 | 33 | 72 | 30 | 141 x 58 x 75 |
| V-3396 | 46 | 33 | 96 | 40 | 163 x 62 x 75 |
| V-4448 | 38 | 44 | 48 | 40 | 120 x 78 x 93 |
| V-4460 | 49 | 44 | 60 | 40 | 145 x 125 x 88 |
| V-6548 | 89 | 65 | 48 | 60 | 134 x 110 x 144 |
V Series Vibratory Tub Sell Sheet
