VB SERIES VIBRATORY TUB
Robust & Versatile
The Value Base (VB Series) vibratory finishing tubs are the most cost-effective tubs in ALMCO’s line of vibratory finishing tubs. Offered at a lower price point with fewer options and simpler electrical controls, these straight tub vibratory finishing machines still offer great results. Manual interaction is required for loading and unloading. The aggressive vibratory action guarantees that the parts are finished exactly to your desired specification.
The tub cross-section is designed to maximize the finishing action. These machines are robust, versatile and capable of processing parts in batches using a wide variety of finishing media.
How It Works
When parts and media are placed into the tub, the counterweights on the spinning vibrator shaft cause the spring-mounted processing tub to rapidly oscillate on its springs. This motion causes the mass of parts and media within the tub to vibrate and roll within the tub in an orderly fashion. This rolling action can be controlled by adjusting the speed of the vibrator assembly and by changing the amount of counterweight.
Features
- Wet or dry processing capabilities

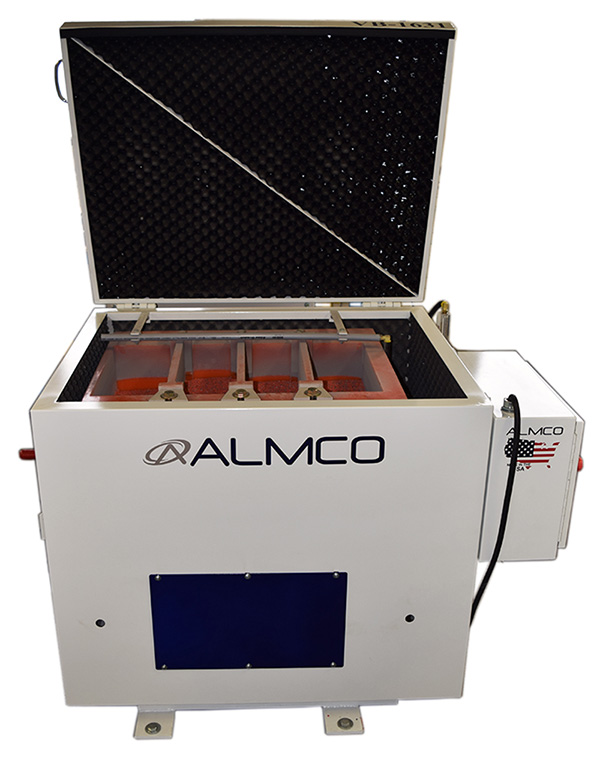

- Sound Hood
- Variable amplitude for process adjustment
- Heavy duty polyurethane lining

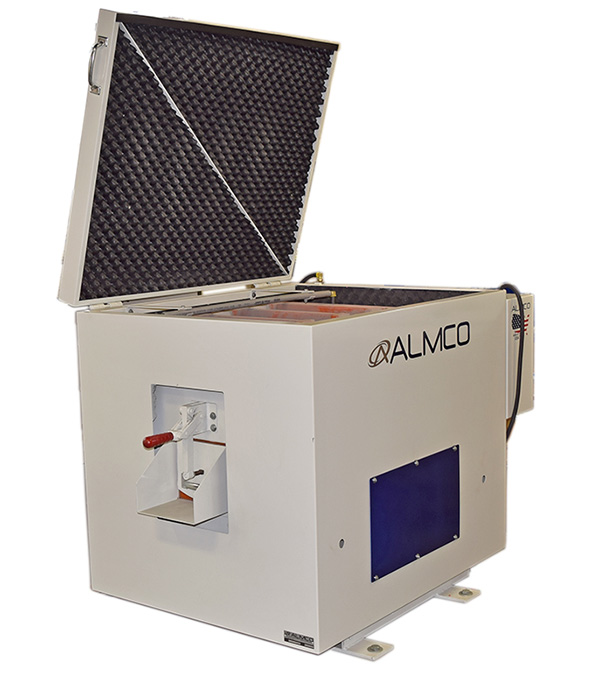

- Manual loading and unloading
- Low-mid volume production
Options
- Automatic lubrication system
- Flowmeter

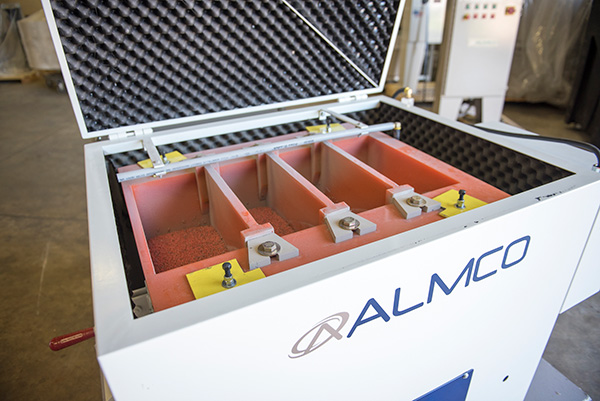

- Tub divider
- Air-operated discharge door
- Automated loading and unloading
- UL 508A electrical controls
| Model No. | Working Capacity (Cu Ft.) | Tub Cross Section (In) | Tub Length (In) | Drive HP | Overall Dimensions (In) |
|---|---|---|---|---|---|
| VB-1410 | 1.1 | 14 | 10 | 1 | 31 x 30 x 41 |
| VB-1439 | 4.4 | 14 | 39 | 5 | 48 x 33 x 44 |
| VB-1448 | 5.4 | 15 | 48 | 5 | 89 x 33 x 49 |
| VB-1615 | 2.3 | 16.5 | 16.5 | 3 | 46 x 34 x 40 |

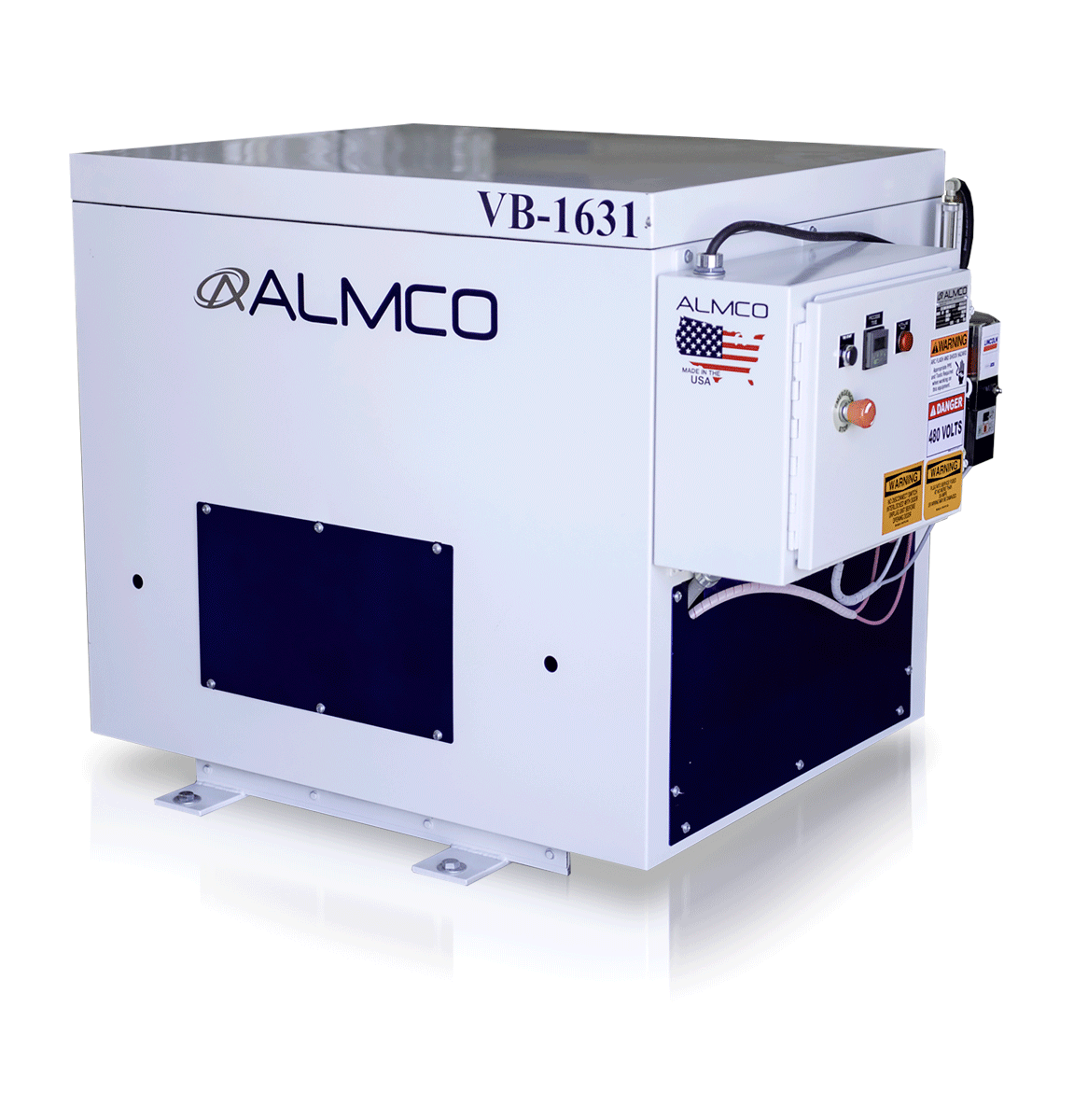

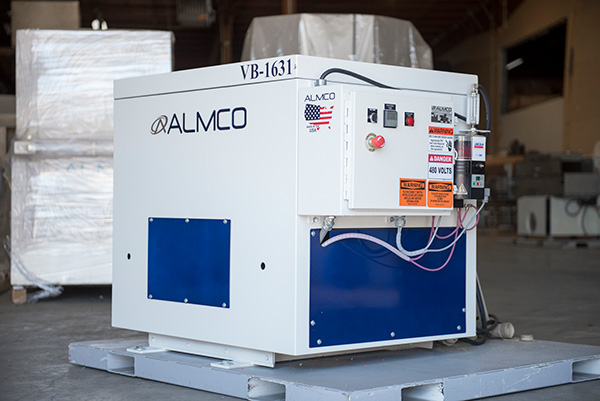

| VB-1631 | 4.7 | 16.5 | 30.5 | 5 | 53 x 35 x 38 |
| VB-1648 | 7.4 | 16.5 | 48 | 10 | 86 x 35 x 45 |
| VB-2034 | 7.6 | 19.25 | 34 | 7.5 | 63 x 42 x 51 |
| VB-2048 | 11.3 | 19 | 48 | 7.5 | 75 x 62 x 55 |
| VB-2056 | 13.1 | 19 | 56 | 10 | 67 x 42 x 53 |
VB Series Vibratory Tub Sell Sheet
