ROTARY TOP LOAD WASHERS
Perfect Solution for Batch Cleaning

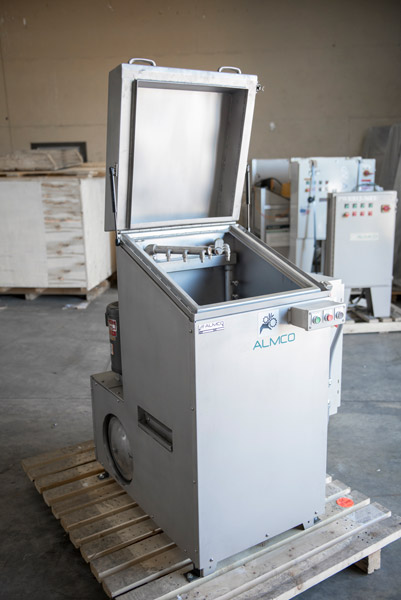

The Rotary Top-load Washers (RTW Series) are similar to ALMCO’s Rotary Cabinet Washers, but instead of utilizing a front swing door to load parts, they feature a lift-up lid on top of the machine. These machines have several optional configurations and can be equipped with a powered lid for automation with a robotic loading system.
These versatile parts washers come in several standard sizes to fit any project. They are the perfect solution for your batch cleaning needs and can also be incorporated into manufacturing work cells.
How It Works

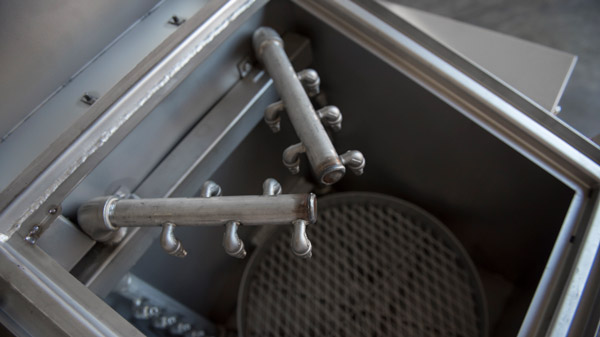

Parts are placed directly onto the stainless steel turntable or fixture from overhead. Press the start button to begin the wash cycle where the turntable begins to rotate, exposing all parts sides to the spray nozzle for a 360-degree wash. A process timer is activated to ensure correct wash cycle time.
Features
- Heated wash tank
- Float switch for heater protection
- Standard 230V or 460V power source
- Process timer for each wash cycle
- Safety interlock switch on lid & doors
- Standard sizes of 20″, 25″ and 36″ turntables
- Removable stainless steel chip tray in wash
- All stainless steel construction
- Automatic water and compound replenishment
Options

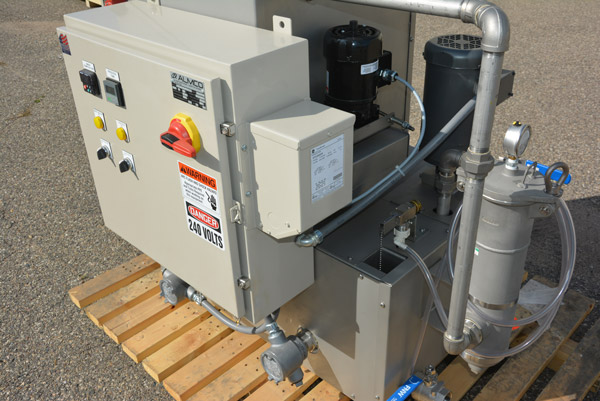

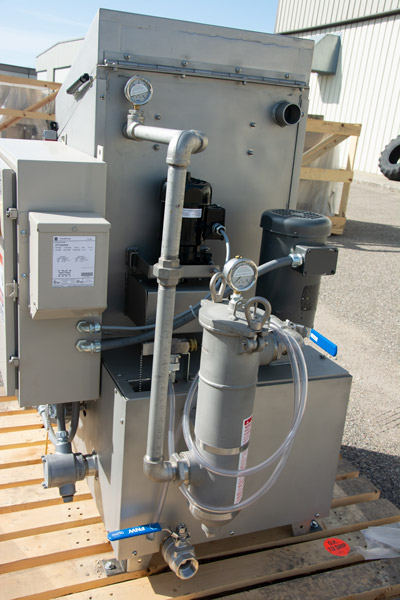

- Stainless steel bag filtration units
- Rinse and blow-off stages may be added
- Oil skimmer or coalescer
- Variable speed, stainless steel turntable/ platform
- Insulated wash and rinse tanks
- Vapor exhaust system
- PLC and touch screen controls
- Certain models available as electric or heat
- UL 508A electrical controls
| Model | Turn Table Diameter (In) | Pump (HP) | Overall Dimensions (In) |
|---|---|---|---|
| RTW-20 | 20 | 2 | 36 x 52 x 73 |
| RTW-25 | 25 | 3 | 51 x 50.5 x 74 |
| RTW-36 | 36 | 5 | 63.5 x 78 x 98.5 |

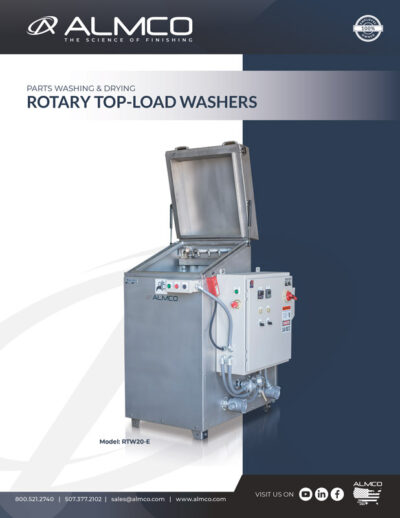

Rotary Top-Load Washer Sell Sheet
