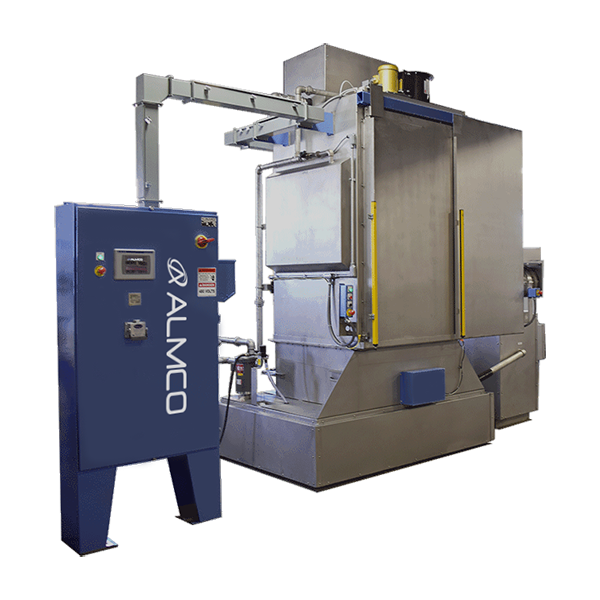

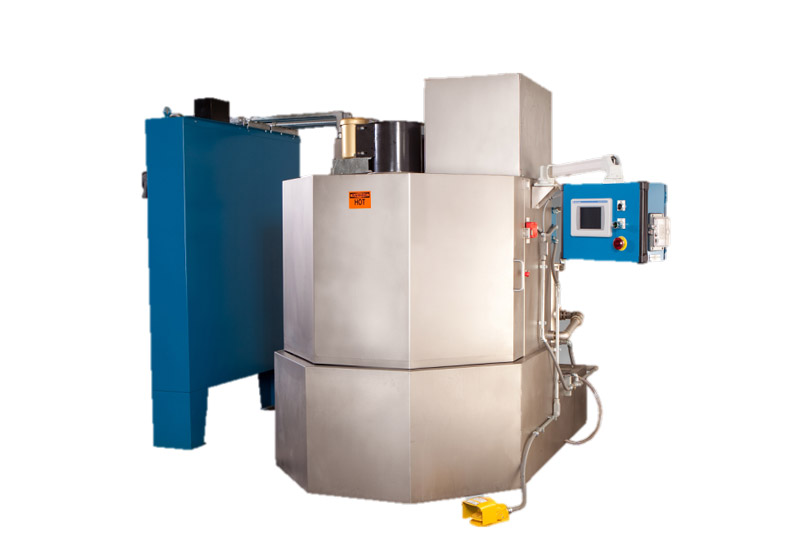

ROTARY PARTS WASHERS
Features:
- Heated wash tank
- Float switch for heater protection
- Standard 230V or 460V power source (380V or 575V optional)
- Six standard turntable sizes from 18″ to 72″. Custom sizes available
- Process timer for each wash cycle
- Safety interlock switch on lid & doors
- Rinse & blow-off stages may be added
- Removable stainless-steel chip tray in wash
- All stainless-steel construction and compact size
- Variable speed, stainless steel turntable/platform
- Vapor exhaust duct connections
Options:

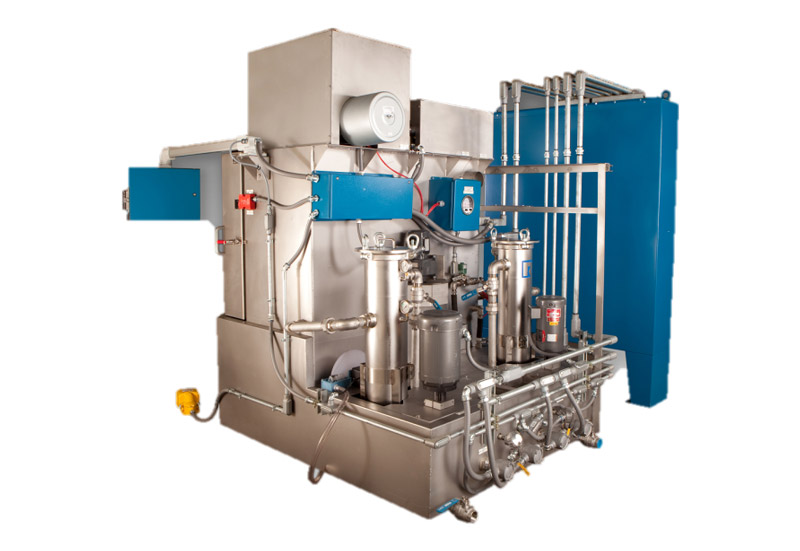

- Bag filter system
- Stainless steel bag filtration units
- Rinse and blow-off stages may be added
- Oil skimmer or coalescer
- Insulated wash and rinse tanks
- Vapor exhaust system
- Automatic water and compound replenishment
- PLC and touch screen controls
- Rotating turntable or stationary platform
- UL 508A Electrical Controls: UL® 508A is an Underwriters Laboratories directive for components and wiring practices as they pertain to industrial control panels.

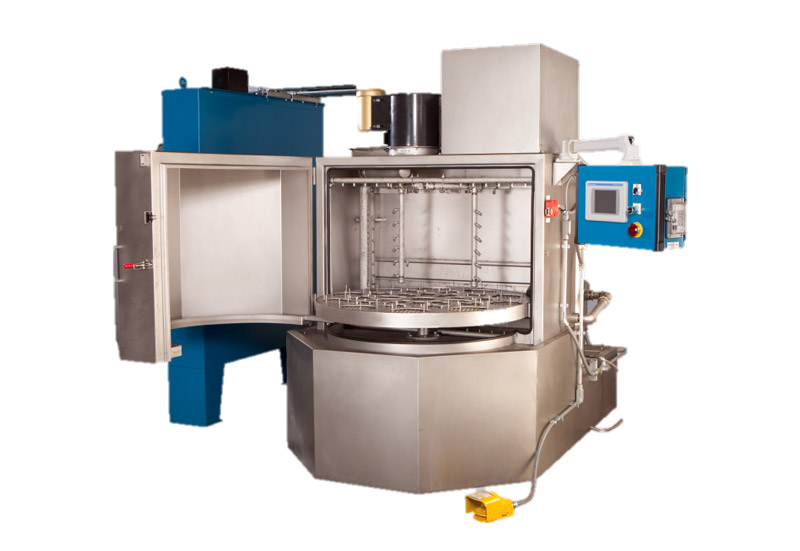

Rotary parts washers feature a front loading system onto a turntable or platform and is adaptable for batch or continuous cleaning of parts. These washers can be easily configured for pass-through operation by combining them into a continuous feed work cell. The powered sliding doors close once the part has been put in place to contain the spray. This series ability to fixture parts allows difficult to reach areas to be effectively cleaned.
| Turntables Diameters (In) | Standard Inside Cabinet Height (In) | Standard Wash/Rinse (Gal) | Wash/Rinse HP | Standard Blow off HP |
|---|---|---|---|---|
| 18 | 18 | 140/90 | 3/1 | 2 |
| 24 | 24 | 185/110 | 3/2 | 3 |
| 30 | 30 | 200/110 | 5/2 | 3 |
| 36 | 36 | 220/120 | 5/2 | 5 |
| 42 | 36 | 275/160 | 7.5/2 | 5 |
| 48 | 36 | 340/210 | 7.5/3 | 5 |
| 54 | 36 | 395/240 | 10/3 | 5 |
